Harken Carbo Airblocks- 57mm

57mm Carbo

Ultra-high strength-to-weight ratio
Lightweight composite plastic
UV Resistant
Carbon black Delrin balls for increased load capacity
Open sheave to reduce weight
Cam-Lock system locks block in front or side positions
Can be used as a becket block by routing the line through the hole in the centre of the sheave.

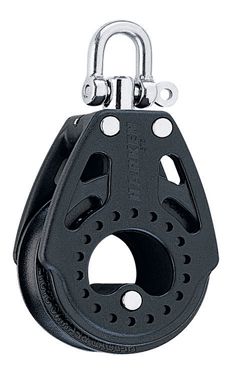

57mm Carbo Single Swivel

	Sheave Diameter:	57mm (2 1/4")
	Maximum Rope Diameter:	10mm (3/8")
	Working Load:	359 kg (792lbs)
	Break Load:	1079 kg (2380 lbs)
	All singles can be used as a becket block by routing the line through the hole in the centre of the sheave.

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing - 10:1 Holding power with 180° wrap!

Nylon resin sideplates are densely packed with long-glass fibers for a compact block with a high strength-to-weight ratio. Machined aluminum sheaves are hardcoat anodized for strength and corrosion resistance. Eight facets hold line securely. Ball bearings, sheave, and sideplates are UV-stabilized with carbon black for maximum protection.

Precise on/off control is possible with accessible, easy-to-operate on/off switches on both sides of the block.

Use for:
Main/jib/spinnaker sheets
Mainsheet fine-tune
Traveler controls
Genoa leads
Foreguy
Vangs

Carbo Single Swivel

Code	Length	Weight	Shackle Ø
2600	110mm	87g	5mm

Carbo Single Swivel & Becket

Code	Length	Weight	Shackle Ø
2601	132mm	96g	5mm
